jeecgboot3.5集成达梦

本章介绍一下新版本flowable(v6.7.*)和达梦数据库(v8-1-3-26)链接

1. 添加达梦数据库驱动

jeecg-system-start模块pom文件

<!--    达梦数据库驱动    -->
<dependency>
    <groupId>com.dameng</groupId>
    <artifactId>Dm8JdbcDriver18</artifactId>
    <version>8.1.1.49</version>
</dependency>

<!--    达梦数据库方言    -->
<dependency>
    <groupId>com.dameng</groupId>
    <artifactId>DmDialect-for-hibernate5.0</artifactId>
    <version>8.1.1.49</version>
</dependency>

2. 修改yml文件

jeecg-system-start模块yml文件

• 修改quartz定时任务的属性initialize-schema为never

quartz:
  initialize-schema: never

• 修改jpa属性dialect方言

jpa:
  open-in-view: false
  properties:
    hibernate:
      dialect: org.hibernate.dialect.DmDialect

• 修改数据源结构

spring:
  datasource:
    druid:
      stat-view-servlet:
        enabled: true
        loginUsername: admin
        loginPassword: 123456
        allow:
      web-stat-filter:
        enabled: true
    # 多数据源
    dynamic:
      druid:
        # 不支持wall，需要移除掉
        filters: stat,slf4j
        # 初始连接数
        initialSize: 5
        validationQuery: SELECT 1 FROM DUAL
        # 最小连接池数量
        minIdle: 5
        # 最大连接池数量
        maxActive: 10
      datasource:
        master:
          # 重点是将数据源指向oracle 用compatibleMode=oracle即可
          url: jdbc:dm://127.0.0.1:5236/?schema=SYSDBA&compatibleMode=oracle&zeroDateTimeBehavior=convertToNull&useUnicode=true&characterEncoding=utf-8
          username: SYSDBA
          password: SYSDBA
          driverClassName: dm.jdbc.driver.DmDialect

3.liquibase4.x适配

在liquibase.database.core.OracleDatabase#setConnection中代码会通过调用存储过程{call DBMS_UTILITY.DB_VERSION(?,?)}获取版本号通过解析后封装到databaseMajorVersion与databaseMinorVersion中。在达梦中并没有该存储过程，执行后控制台会报改错，因为取不到值

在项目中新建liquibase.database.core目录并重写该部分源码，代码如下

package liquibase.database.core;

import java.lang.reflect.Method;
import java.sql.*;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.HashSet;
import java.util.List;
import java.util.Locale;
import java.util.Map;
import java.util.Properties;
import java.util.ResourceBundle;
import java.util.Set;
import java.util.regex.Matcher;
import java.util.regex.Pattern;

import dm.jdbc.driver.DmdbConnection;
import liquibase.CatalogAndSchema;
import liquibase.GlobalConfiguration;
import liquibase.Scope;
import liquibase.database.AbstractJdbcDatabase;
import liquibase.database.DatabaseConnection;
import liquibase.database.OfflineConnection;
import liquibase.database.jvm.JdbcConnection;
import liquibase.exception.DatabaseException;
import liquibase.exception.UnexpectedLiquibaseException;
import liquibase.exception.ValidationErrors;
import liquibase.executor.ExecutorService;
import liquibase.statement.DatabaseFunction;
import liquibase.statement.SequenceCurrentValueFunction;
import liquibase.statement.SequenceNextValueFunction;
import liquibase.statement.UniqueConstraint;
import liquibase.statement.core.RawCallStatement;
import liquibase.statement.core.RawSqlStatement;
import liquibase.structure.DatabaseObject;
import liquibase.structure.core.Catalog;
import liquibase.structure.core.Index;
import liquibase.structure.core.PrimaryKey;
import liquibase.structure.core.Schema;
import liquibase.util.JdbcUtil;
import liquibase.util.StringUtil;

public class OracleDatabase extends AbstractJdbcDatabase {
    public static final Pattern PROXY_USER = Pattern.compile(".*(?:thin|oci)\\:(.+)/@.*");
    public static final String PRODUCT_NAME = "oracle";
    private static ResourceBundle coreBundle = ResourceBundle.getBundle("liquibase/i18n/liquibase-core");
    protected final int SHORT_IDENTIFIERS_LENGTH = 30;
    protected final int LONG_IDENTIFIERS_LEGNTH = 128;
    public static final int ORACLE_12C_MAJOR_VERSION = 12;
    private Set<String> reservedWords = new HashSet();
    private Set<String> userDefinedTypes;
    private Map<String, String> savedSessionNlsSettings;
    private Boolean canAccessDbaRecycleBin;
    private Integer databaseMajorVersion;
    private Integer databaseMinorVersion;

    public OracleDatabase() {
        super.unquotedObjectsAreUppercased = true;
        super.setCurrentDateTimeFunction("SYSTIMESTAMP");
        this.dateFunctions.add(new DatabaseFunction("SYSDATE"));
        this.dateFunctions.add(new DatabaseFunction("SYSTIMESTAMP"));
        this.dateFunctions.add(new DatabaseFunction("CURRENT_TIMESTAMP"));
        super.sequenceNextValueFunction = "%s.nextval";
        super.sequenceCurrentValueFunction = "%s.currval";
    }

    public int getPriority() {
        return 1;
    }

    private void tryProxySession(String url, Connection con) {
        Matcher m = PROXY_USER.matcher(url);
        if (m.matches()) {
            Properties props = new Properties();
            props.put("PROXY_USER_NAME", m.group(1));

            Method method;
            try {
                method = con.getClass().getMethod("openProxySession", Integer.TYPE, Properties.class);
                method.setAccessible(true);
                method.invoke(con, 1, props);
            } catch (Exception var8) {
                Scope.getCurrentScope().getLog(this.getClass()).info("Could not open proxy session on OracleDatabase: " + var8.getCause().getMessage());
                return;
            }

            try {
                method = con.getClass().getMethod("isProxySession");
                method.setAccessible(true);
                boolean b = (Boolean)method.invoke(con);
                if (!b) {
                    Scope.getCurrentScope().getLog(this.getClass()).info("Proxy session not established on OracleDatabase: ");
                }
            } catch (Exception var7) {
                Scope.getCurrentScope().getLog(this.getClass()).info("Could not open proxy session on OracleDatabase: " + var7.getCause().getMessage());
            }
        }

    }

    public void setConnection(DatabaseConnection conn) {
        this.reservedWords.addAll(Arrays.asList("GROUP", "USER", "SESSION", "PASSWORD", "RESOURCE", "START", "SIZE", "UID", "DESC", "ORDER"));
        Connection sqlConn = null;
        if (!(conn instanceof OfflineConnection)) {
            try {
                if (conn instanceof JdbcConnection) {
                    sqlConn = ((JdbcConnection)conn).getWrappedConnection();
                }
            } catch (Exception var29) {
                throw new UnexpectedLiquibaseException(var29);
            }

            if (sqlConn != null) {
                this.tryProxySession(conn.getURL(), sqlConn);

                try {
                    this.reservedWords.addAll(Arrays.asList(sqlConn.getMetaData().getSQLKeywords().toUpperCase().split(",\\s*")));
                } catch (SQLException var28) {
                    Scope.getCurrentScope().getLog(this.getClass()).info("Could get sql keywords on OracleDatabase: " + var28.getMessage());
                }

                try {
                    Method method = sqlConn.getClass().getMethod("setRemarksReporting", Boolean.TYPE);
                    method.setAccessible(true);
                    method.invoke(sqlConn, true);
                } catch (Exception var27) {
                    Scope.getCurrentScope().getLog(this.getClass()).info("Could not set remarks reporting on OracleDatabase: " + var27.getMessage());
                }

                CallableStatement statement = null;
                try {
                    DatabaseMetaData metaData = sqlConn.getMetaData();
                    Connection connection = metaData.getConnection();
                    if (connection instanceof DmdbConnection) {
                        String compatibleVersion = "11.2.0.4.0";
                        Matcher majorVersionMatcher = Pattern.compile("(\\d+)\\.(\\d+)\\..*").matcher(compatibleVersion);
                        if (majorVersionMatcher.matches()) {
                            this.databaseMajorVersion = Integer.valueOf(majorVersionMatcher.group(1));
                            this.databaseMinorVersion = Integer.valueOf(majorVersionMatcher.group(2));
                        }
                    }else{
                        //noinspection HardCodedStringLiteral
                        statement = sqlConn.prepareCall("{call DBMS_UTILITY.DB_VERSION(?,?)}");
                        statement.registerOutParameter(1, Types.VARCHAR);
                        statement.registerOutParameter(2, Types.VARCHAR);
                        statement.execute();

                        String compatibleVersion = statement.getString(2); //"11.2.0.4.0";

                        if (compatibleVersion != null) {
                            Matcher majorVersionMatcher = Pattern.compile("(\\d+)\\.(\\d+)\\..*").matcher(compatibleVersion);
                            if (majorVersionMatcher.matches()) {
                                this.databaseMajorVersion = Integer.valueOf(majorVersionMatcher.group(1));
                                this.databaseMinorVersion = Integer.valueOf(majorVersionMatcher.group(2));
                            }
                        }
                    }

                } catch (SQLException e) {
                    @SuppressWarnings("HardCodedStringLiteral") String message = "Cannot read from DBMS_UTILITY.DB_VERSION: " + e.getMessage();

                    //noinspection HardCodedStringLiteral
                    Scope.getCurrentScope().getLog(getClass()).info("Could not set check compatibility mode on OracleDatabase, assuming not running in any sort of compatibility mode: " + message);
                } finally {
                    JdbcUtil.closeStatement(statement);
                }
            }
        }

        super.setConnection(conn);
    }

    public String getShortName() {
        return "oracle";
    }

    protected String getDefaultDatabaseProductName() {
        return "Oracle";
    }

    public int getDatabaseMajorVersion() throws DatabaseException {
        return this.databaseMajorVersion == null ? super.getDatabaseMajorVersion() : this.databaseMajorVersion;
    }

    public int getDatabaseMinorVersion() throws DatabaseException {
        return this.databaseMinorVersion == null ? super.getDatabaseMinorVersion() : this.databaseMinorVersion;
    }

    public Integer getDefaultPort() {
        return 1521;
    }

    public String getJdbcCatalogName(CatalogAndSchema schema) {
        return null;
    }

    public String getJdbcSchemaName(CatalogAndSchema schema) {
        return this.correctObjectName(schema.getCatalogName() == null ? schema.getSchemaName() : schema.getCatalogName(), Schema.class);
    }

    protected String getAutoIncrementClause(String generationType, Boolean defaultOnNull) {
        if (StringUtil.isEmpty(generationType)) {
            return super.getAutoIncrementClause();
        } else {
            String autoIncrementClause = "GENERATED %s AS IDENTITY";
            String generationStrategy = generationType;
            if (Boolean.TRUE.equals(defaultOnNull) && generationType.toUpperCase().equals("BY DEFAULT")) {
                generationStrategy = generationType + " ON NULL";
            }

            return String.format(autoIncrementClause, generationStrategy);
        }
    }

    public String generatePrimaryKeyName(String tableName) {
        return tableName.length() > 27 ? "PK_" + tableName.toUpperCase(Locale.US).substring(0, 27) : "PK_" + tableName.toUpperCase(Locale.US);
    }

    public boolean supportsInitiallyDeferrableColumns() {
        return true;
    }

    public boolean isReservedWord(String objectName) {
        return this.reservedWords.contains(objectName.toUpperCase());
    }

    public boolean supportsSequences() {
        return true;
    }

    public boolean supportsSchemas() {
        return false;
    }

    protected String getConnectionCatalogName() throws DatabaseException {
        if (this.getConnection() instanceof OfflineConnection) {
            return this.getConnection().getCatalog();
        } else if (!(this.getConnection() instanceof JdbcConnection)) {
            return this.defaultCatalogName;
        } else {
            try {
                return (String)((ExecutorService)Scope.getCurrentScope().getSingleton(ExecutorService.class)).getExecutor("jdbc", this).queryForObject(new RawCallStatement("select sys_context( 'userenv', 'current_schema' ) from dual"), String.class);
            } catch (Exception var2) {
                Scope.getCurrentScope().getLog(this.getClass()).info("Error getting default schema", var2);
                return null;
            }
        }
    }

    public boolean isCorrectDatabaseImplementation(DatabaseConnection conn) throws DatabaseException {
        return "oracle".equalsIgnoreCase(conn.getDatabaseProductName());
    }

    public String getDefaultDriver(String url) {
        return url.startsWith("jdbc:oracle") ? "oracle.jdbc.OracleDriver" : null;
    }

    public String getDefaultCatalogName() {
        return super.getDefaultCatalogName() == null ? null : super.getDefaultCatalogName().toUpperCase(Locale.US);
    }

    public String getDateLiteral(String isoDate) {
        String normalLiteral = super.getDateLiteral(isoDate);
        if (this.isDateOnly(isoDate)) {
            return "TO_DATE(" + normalLiteral + ", 'YYYY-MM-DD')";
        } else if (this.isTimeOnly(isoDate)) {
            return "TO_DATE(" + normalLiteral + ", 'HH24:MI:SS')";
        } else if (this.isTimestamp(isoDate)) {
            return "TO_TIMESTAMP(" + normalLiteral + ", 'YYYY-MM-DD HH24:MI:SS.FF')";
        } else if (this.isDateTime(isoDate)) {
            int seppos = normalLiteral.lastIndexOf(46);
            if (seppos != -1) {
                normalLiteral = normalLiteral.substring(0, seppos) + "'";
            }

            return "TO_DATE(" + normalLiteral + ", 'YYYY-MM-DD HH24:MI:SS')";
        } else {
            return "UNSUPPORTED:" + isoDate;
        }
    }

    public boolean isSystemObject(DatabaseObject example) {
        if (example == null) {
            return false;
        } else if (this.isLiquibaseObject(example)) {
            return false;
        } else {
            if (example instanceof Schema) {
                label131: {
                    if (!"SYSTEM".equals(example.getName()) && !"SYS".equals(example.getName()) && !"CTXSYS".equals(example.getName()) && !"XDB".equals(example.getName())) {
                        if (!"SYSTEM".equals(example.getSchema().getCatalogName()) && !"SYS".equals(example.getSchema().getCatalogName()) && !"CTXSYS".equals(example.getSchema().getCatalogName()) && !"XDB".equals(example.getSchema().getCatalogName())) {
                            break label131;
                        }

                        return true;
                    }

                    return true;
                }
            } else if (this.isSystemObject(example.getSchema())) {
                return true;
            }

            if (example instanceof Catalog) {
                if ("SYSTEM".equals(example.getName()) || "SYS".equals(example.getName()) || "CTXSYS".equals(example.getName()) || "XDB".equals(example.getName())) {
                    return true;
                }
            } else if (example.getName() != null) {
                if (example.getName().startsWith("BIN$")) {
                    boolean filteredInOriginalQuery = this.canAccessDbaRecycleBin();
                    if (!filteredInOriginalQuery) {
                        filteredInOriginalQuery = StringUtil.trimToEmpty(example.getSchema().getName()).equalsIgnoreCase(this.getConnection().getConnectionUserName());
                    }

                    if (!filteredInOriginalQuery) {
                        return true;
                    }

                    return !(example instanceof PrimaryKey) && !(example instanceof Index) && !(example instanceof UniqueConstraint);
                }

                if (example.getName().startsWith("AQ$")) {
                    return true;
                }

                if (example.getName().startsWith("DR$")) {
                    return true;
                }

                if (example.getName().startsWith("SYS_IOT_OVER")) {
                    return true;
                }

                if ((example.getName().startsWith("MDRT_") || example.getName().startsWith("MDRS_")) && example.getName().endsWith("$")) {
                    return true;
                }

                if (example.getName().startsWith("MLOG$_")) {
                    return true;
                }

                if (example.getName().startsWith("RUPD$_")) {
                    return true;
                }

                if (example.getName().startsWith("WM$_")) {
                    return true;
                }

                if ("CREATE$JAVA$LOB$TABLE".equals(example.getName())) {
                    return true;
                }

                if ("JAVA$CLASS$MD5$TABLE".equals(example.getName())) {
                    return true;
                }

                if (example.getName().startsWith("ISEQ$$_")) {
                    return true;
                }

                if (example.getName().startsWith("USLOG$")) {
                    return true;
                }

                if (example.getName().startsWith("SYS_FBA")) {
                    return true;
                }
            }

            return super.isSystemObject(example);
        }
    }

    public boolean supportsTablespaces() {
        return true;
    }

    public boolean supportsAutoIncrement() {
        boolean isAutoIncrementSupported = false;

        try {
            if (this.getDatabaseMajorVersion() >= 12) {
                isAutoIncrementSupported = true;
            }
        } catch (DatabaseException var3) {
            isAutoIncrementSupported = false;
        }

        return isAutoIncrementSupported;
    }

    public boolean supportsRestrictForeignKeys() {
        return false;
    }

    public int getDataTypeMaxParameters(String dataTypeName) {
        if ("BINARY_FLOAT".equals(dataTypeName.toUpperCase())) {
            return 0;
        } else {
            return "BINARY_DOUBLE".equals(dataTypeName.toUpperCase()) ? 0 : super.getDataTypeMaxParameters(dataTypeName);
        }
    }

    public String getSystemTableWhereClause(String tableNameColumn) {
        List<String> clauses = new ArrayList(Arrays.asList("BIN$", "AQ$", "DR$", "SYS_IOT_OVER", "MLOG$_", "RUPD$_", "WM$_", "ISEQ$$_", "USLOG$", "SYS_FBA"));

        for(int i = 0; i < clauses.size(); ++i) {
            clauses.set(i, tableNameColumn + " NOT LIKE '" + (String)clauses.get(i) + "%'");
        }

        return "(" + StringUtil.join(clauses, " AND ") + ")";
    }

    public boolean jdbcCallsCatalogsSchemas() {
        return true;
    }

    public Set<String> getUserDefinedTypes() {
        if (this.userDefinedTypes == null) {
            this.userDefinedTypes = new HashSet();
            if (this.getConnection() != null && !(this.getConnection() instanceof OfflineConnection)) {
                try {
                    try {
                        this.userDefinedTypes.addAll(((ExecutorService)Scope.getCurrentScope().getSingleton(ExecutorService.class)).getExecutor("jdbc", this).queryForList(new RawSqlStatement("SELECT DISTINCT TYPE_NAME FROM ALL_TYPES"), String.class));
                    } catch (DatabaseException var2) {
                        this.userDefinedTypes.addAll(((ExecutorService)Scope.getCurrentScope().getSingleton(ExecutorService.class)).getExecutor("jdbc", this).queryForList(new RawSqlStatement("SELECT TYPE_NAME FROM USER_TYPES"), String.class));
                    }
                } catch (DatabaseException var3) {
                }
            }
        }

        return this.userDefinedTypes;
    }

    public String generateDatabaseFunctionValue(DatabaseFunction databaseFunction) {
        if (databaseFunction != null && "current_timestamp".equalsIgnoreCase(databaseFunction.toString())) {
            return databaseFunction.toString();
        } else if (!(databaseFunction instanceof SequenceNextValueFunction) && !(databaseFunction instanceof SequenceCurrentValueFunction)) {
            return super.generateDatabaseFunctionValue(databaseFunction);
        } else {
            String quotedSeq = super.generateDatabaseFunctionValue(databaseFunction);
            return quotedSeq.replaceFirst("\"([^.\"]+)\\.([^.\"]+)\"", "\"$1\".\"$2\"");
        }
    }

    public ValidationErrors validate() {
        ValidationErrors errors = super.validate();
        DatabaseConnection connection = this.getConnection();
        if (connection != null && !(connection instanceof OfflineConnection)) {
            if (!this.canAccessDbaRecycleBin()) {
                errors.addWarning(this.getDbaRecycleBinWarning());
            }

            return errors;
        } else {
            Scope.getCurrentScope().getLog(this.getClass()).info("Cannot validate offline database");
            return errors;
        }
    }

    public String getDbaRecycleBinWarning() {
        return "Liquibase needs to access the DBA_RECYCLEBIN table so we can automatically handle the case where constraints are deleted and restored. Since Oracle doesn't properly restore the original table names referenced in the constraint, we use the information from the DBA_RECYCLEBIN to automatically correct this issue.\n\nThe user you used to connect to the database (" + this.getConnection().getConnectionUserName() + ") needs to have \"SELECT ON SYS.DBA_RECYCLEBIN\" permissions set before we can perform this operation. Please run the following SQL to set the appropriate permissions, and try running the command again.\n\n     GRANT SELECT ON SYS.DBA_RECYCLEBIN TO " + this.getConnection().getConnectionUserName() + ";";
    }

    public boolean canAccessDbaRecycleBin() {
        if (this.canAccessDbaRecycleBin == null) {
            DatabaseConnection connection = this.getConnection();
            if (connection == null || connection instanceof OfflineConnection) {
                return false;
            }

            Statement statement = null;

            try {
                statement = ((JdbcConnection)connection).createStatement();
                ResultSet resultSet = statement.executeQuery("select 1 from dba_recyclebin where 0=1");
                resultSet.close();
                this.canAccessDbaRecycleBin = true;
            } catch (Exception var7) {
                if (var7 instanceof SQLException && var7.getMessage().startsWith("ORA-00942")) {
                    this.canAccessDbaRecycleBin = false;
                } else {
                    Scope.getCurrentScope().getLog(this.getClass()).warning("Cannot check dba_recyclebin access", var7);
                    this.canAccessDbaRecycleBin = false;
                }
            } finally {
                JdbcUtil.close((ResultSet)null, statement);
            }
        }

        return this.canAccessDbaRecycleBin;
    }

    public boolean supportsNotNullConstraintNames() {
        return true;
    }

    public boolean isValidOracleIdentifier(String identifier, Class<? extends DatabaseObject> type) {
        if (identifier != null && identifier.length() >= 1) {
            if (!identifier.matches("^(i?)[A-Z][A-Z0-9\\$\\_\\#]*$")) {
                return false;
            } else {
                return identifier.length() <= 128;
            }
        } else {
            return false;
        }
    }

    public int getIdentifierMaximumLength() {
        try {
            if (this.getDatabaseMajorVersion() < 12) {
                return 30;
            } else {
                return this.getDatabaseMajorVersion() == 12 && this.getDatabaseMinorVersion() <= 1 ? 30 : 128;
            }
        } catch (DatabaseException var2) {
            throw new UnexpectedLiquibaseException("Cannot determine the Oracle database version number", var2);
        }
    }
}

4. 项目启动报错

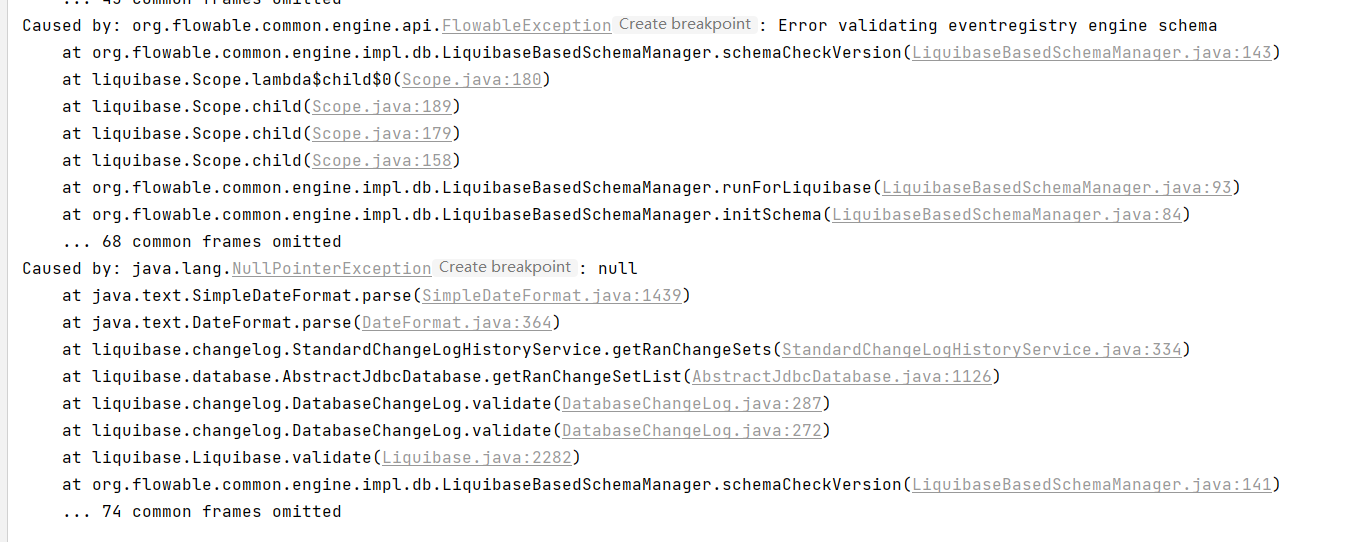

• 报错信息 Error validating eventregistry engine schema

可能原因flowable版本和数据库中的版本不一致，这里是需要删除act和flw开头的表，让flowable自动生成表结构

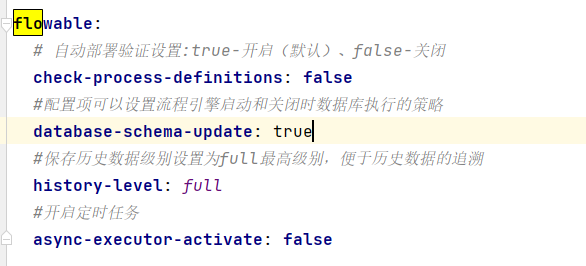

修改yml中的database-schema-update改成true，生成完毕后再将其改成false,避免项目启动后再次报错
